Recessed LED PANEL Q2S UGR<19 for offices, 28W 3000K 3600lm, DALI dimmable

LED Recessed PANEL Q2S UGR<19 for BAP

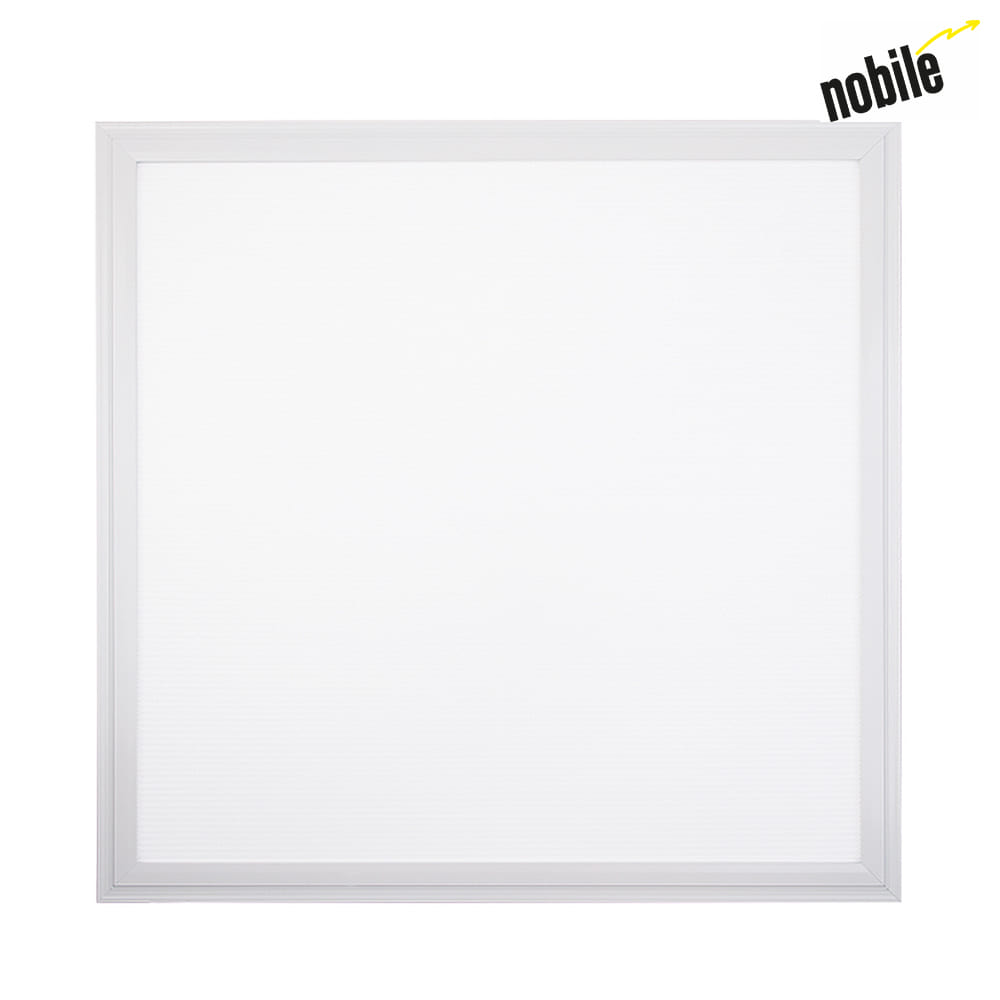

The LED Recessed PANEL Q2S UGR<19 for BAP is a modern lighting solution for indoor spaces. With a power consumption of 28W and a light output of 3900lm, this panel provides bright and energy-efficient illumination.

Technical Details

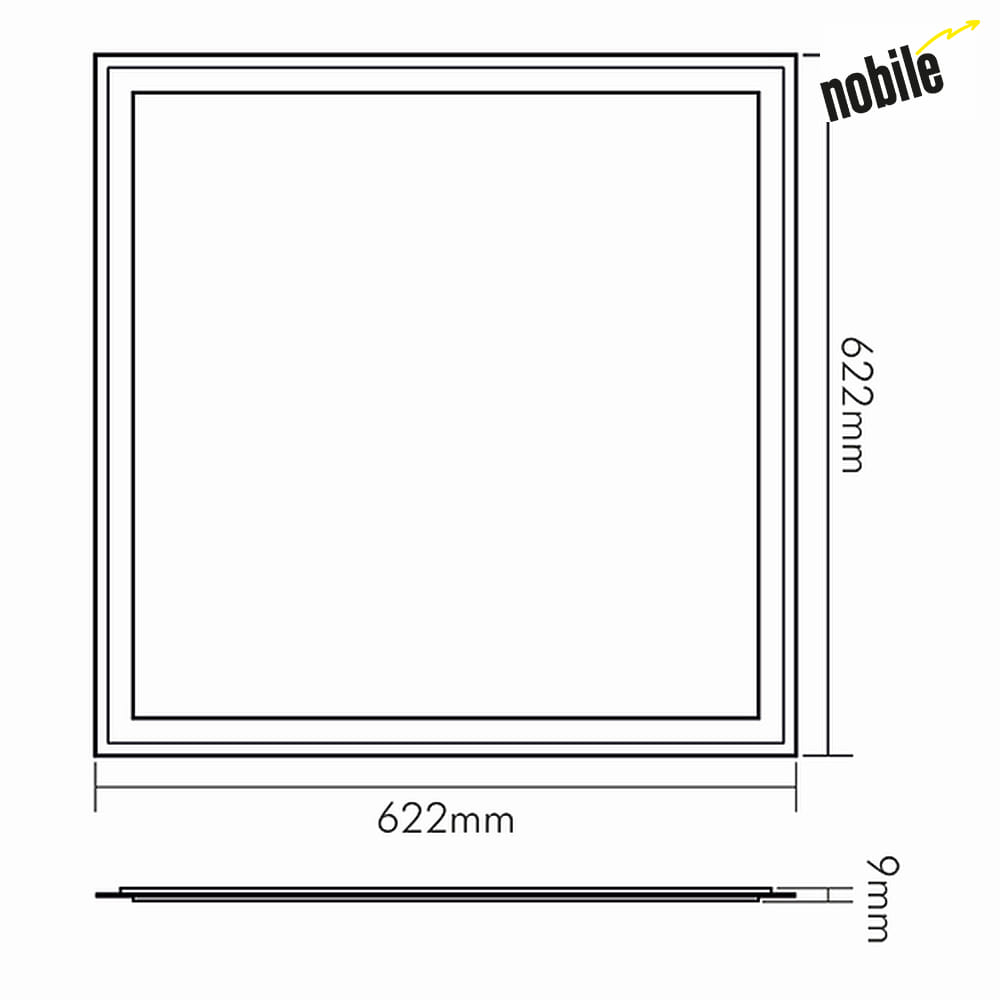

The panel features a warm white light color with a color temperature of 3000K and a color rendering index of >80Ra. Its square shape and dimensions of 60.8 x 60.8 x 0.9 cm make it ideal for ceiling and wall mounting.

Glare assessment and Safety

The LED panel has a glare assessment (UGR) <= 19, ensuring glare-free lighting. With a glare limitation UGR lengthwise 19 and UGR crosswise 18.7, and a luminance y ≤ 65° of <3000 cd/m2, this panel is also suitable for screen workstations. Additionally, it is impact-resistant (IK07) and has an ENEC 05 certification.

Installation and Operating Device

The panel comes with an operating device and can be directly mounted on normal flammable materials. However, installation should be done by electrical personnel according to VDE 0100. The operating device has a rated current of max. 0.4A at 230V AC and operates flicker-free at a rated voltage of 220-240V AC.

Additional Information and Accessories

In addition to the technical details and certifications mentioned above, the LED Recessed PANEL Q2S UGR<19 for BAP is also suitable for pendant suspension and can be mounted with a suspension kit or directly. The suspension kit accessories are not included, but the operating device is. With an average lamp life of 50000 hours, this panel is a durable and efficient lighting solution.
