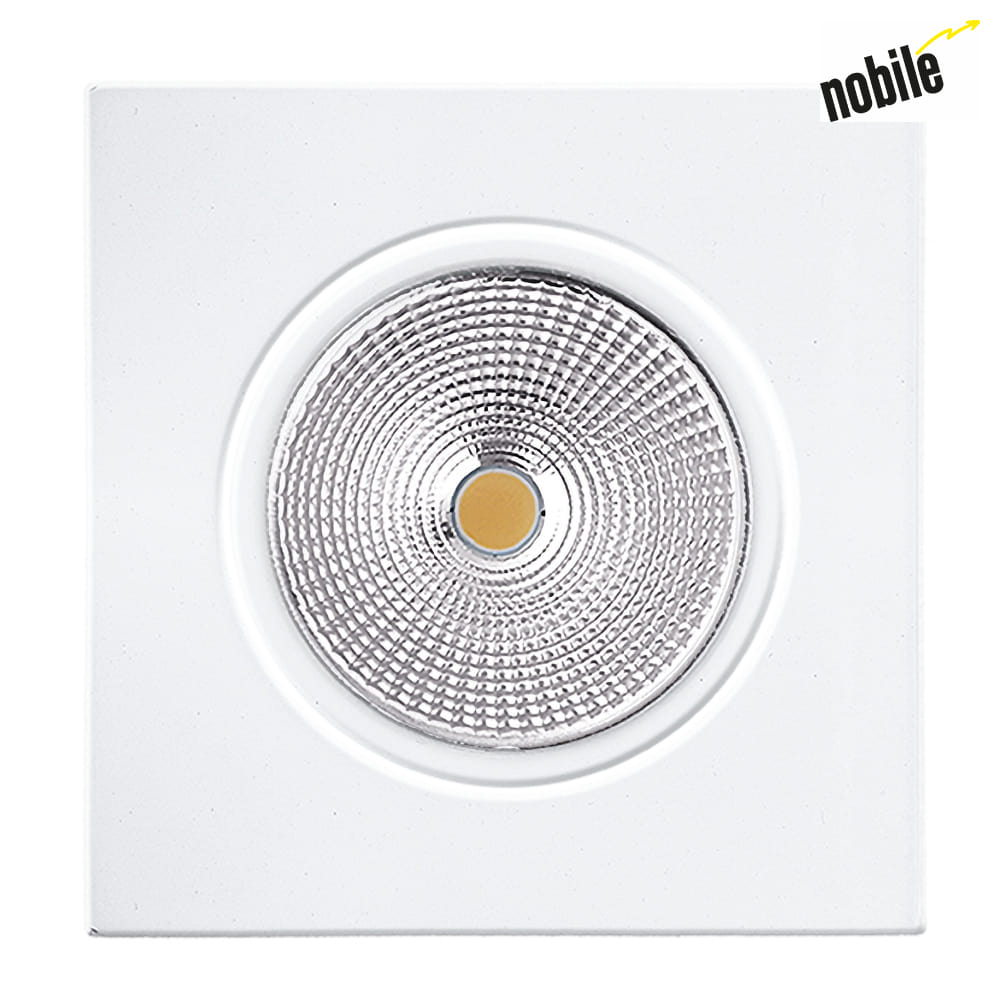

Recessed LED spot 5068Q ECO FLAT, square, 350mA, 8W 3000K 700lm 38°, swivelling, dimmable, matt white

LED Recessed Spotlight 5068Q ECO FLAT - Technical Data

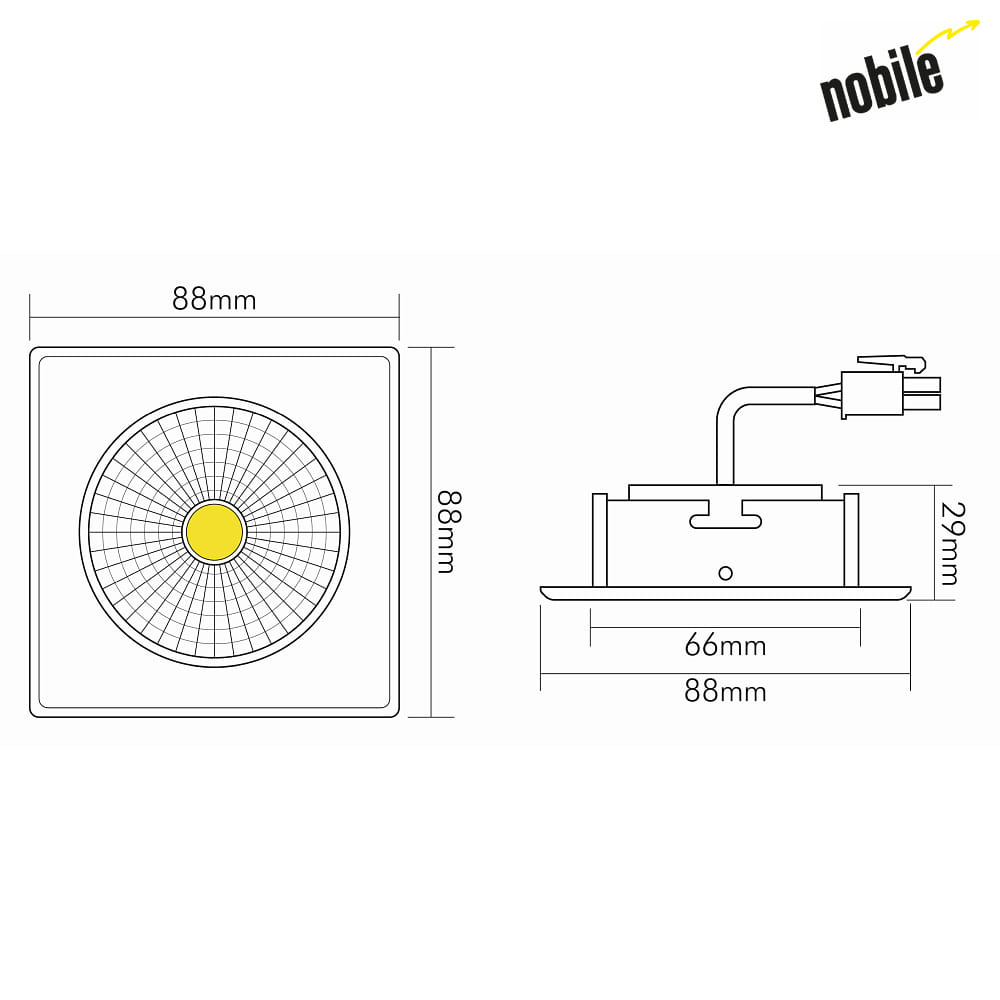

The LED recessed spotlight 5068Q ECO FLAT is a square model with a power of 8W and a color temperature of 3000K. It has a luminous flux of 700lm and a color rendering index of 90Ra. The luminaire is dimmable and can be installed with through-wiring. The housing is made of white matt lacquered aluminum die-cast and glass, with dimensions of 8.8 x 8.8 x 2.9 cm.

Installation and Application

The LED recessed spotlight is ideal for ceiling mounting indoors. It can be mounted on normally flammable surfaces and is suitable for installation in insulated ceilings. The recessed luminaire is only suitable for false ceilings and can also be installed in furniture. Installation should be carried out by qualified electrical personnel.

Accessories and Connection

To operate the recessed spotlight, a control gear is required, which is not included. The connection is made via a 20cm long connection cable with AMP plug-in system 2-pole, which provides reverse polarity protection. The forward voltage is 22.8V and the rated current strength is 350mA.

Additional Information and Features

The LED recessed spotlight features an optical lens for symmetrical light distribution. The swivel range is 20° and the beam angle is 38°. The installation depth is 2.5cm and the installation opening has a diameter of 6.8cm. The luminaire has an average lamp life of 50000 hours and an energy consumption of 8kWh/1000h with energy efficiency class F.

Summary

The LED recessed spotlight 5068Q ECO FLAT is a high-quality and energy-efficient lighting element for indoor use. With its dimmable function, swiveling design, and easy installation, it is versatile. The high color rendering and warm white light output provide pleasant lighting in any room.
