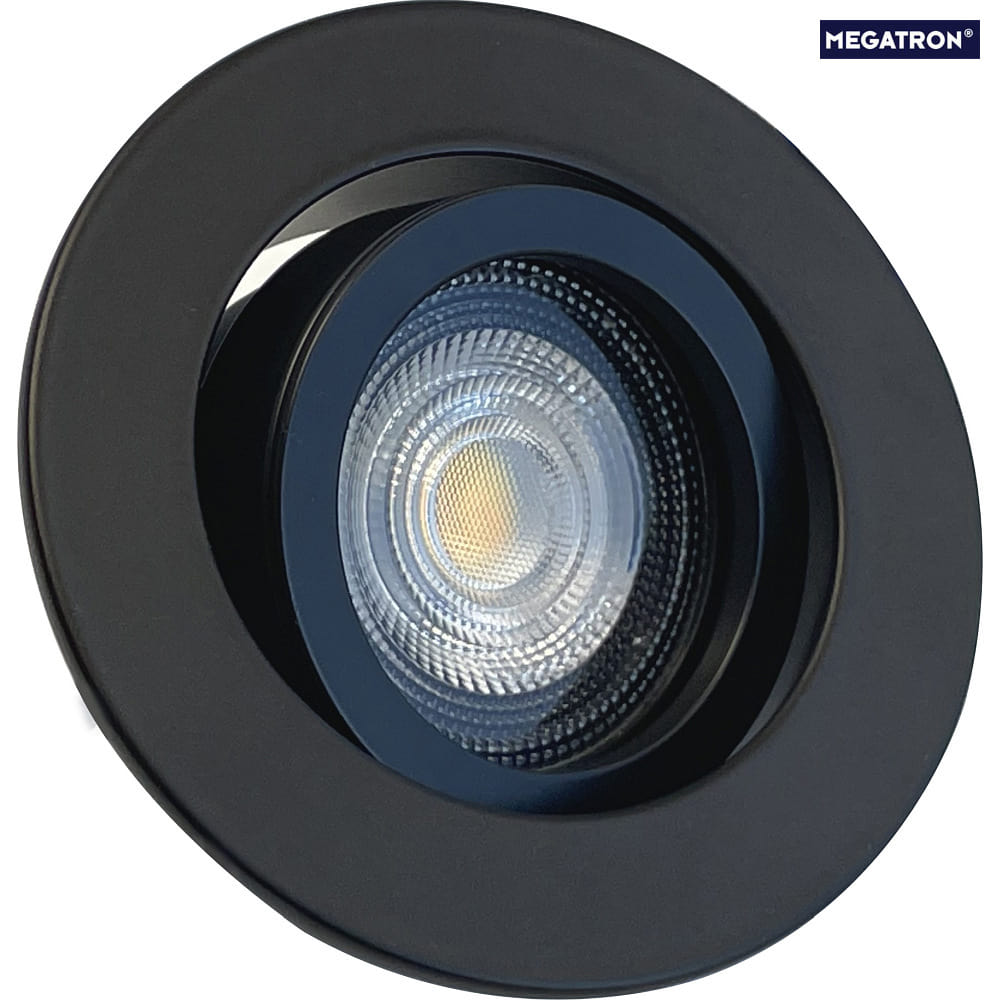

recessed luminaire DECOCLIC 68MM round, swivelling, Dim-To-Warm, set of 1 IP20, black dimmable 7

Megatron



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

DECOCLIC Action Set KOIN DTW, recessed ring + LED module + driver, 7.5W 1800-3000K 520lm 38°, CRI 95, dim-to-warm, swiveling

The DECOCLIC Action Set KOIN DTW offers a high-quality solution for indoor lighting. It consists of a recessed ring, an LED module, and a dimmable LED driver including connectors. With a power of 7.5W and a luminous flux of 520lm, this set provides pleasant lighting in any room.

LED module with dim-to-warm function

The included LED module is tool-free replaceable and features a dim-to-warm function. When dimmed down, the light color becomes warmer, creating a cozy atmosphere. With a color temperature of 1800-3000K and a color rendering index of 95Ra, this module offers very good color reproduction.

Steplessly dimmable and swiveling

Thanks to the stepless dimming from 10 to 100%, the light intensity can be individually adjusted. Additionally, the set is swiveling, allowing for flexible light orientation. With a swivel range of 30° and a beam angle of 38°, this set offers versatile lighting possibilities.

Easy installation and durable technology

The installation of the DECOCLIC Action Set is easy and done in a 68mm cutout. The LED module is durable and switch-resistant, ensuring a long lifespan of up to 50000 hours. Additionally, the module is flicker-free and has a low stroboscopic effect value.

Additional information and accessories

The DECOCLIC Action Set comes with a recessed ring, a high-quality LED module, and a dimmable LED driver. More action sets are available, and both the recessed ring and the KOIN LED modules are also available separately. For integration into DALI systems, driver Art.-No. MT56023 is recommended. With an energy efficiency class of G and protection class 2, this set offers an energy-efficient and safe lighting solution.

Colour:
black
Reflector color:
glossy
Dimension:
Ø∕ H: 8.5/2.6 cm
lamp -Ø∕ H: 5/2.5 cm
driver-L∕ W∕ H: 6.8/3.2/2.1 cm
Material:
aluminium
plastic
Weight:
0.06 kg
Product type:
recessed luminaire
Lamp shape:
round
Bulbs in delivery:
yes
Application area:
suitable for indoor use
Field of application:
ceiling
Operating voltage:
230 V~
Dimmable:
yes
Dimmability:
dim to warm, trailing edge, leading edge
Power frequency:
50/60 Hz
Power consumption:
7,5 W
Emitting angle:
38 °
LED can be replaced :
yes
Bulb type:
LED
Number of bulbs:
1
Light colour:
ultra warm white to warm white
Light emission:
direct
Beam direction:
swivelling
Light flux:
520 lm
Light intensity:
1100 cd
Light yield:
80 lm/W
Colour temperature:
1800-3000 K
Average life span of a bulb in hours:
50000 h
Switching cycles:
100000
Colour rendering index:
> 95 Ra
1A
Lamp current:
38 mA
lamp performance:
7,5 W
Swivel range:
30 °
Throughwiring (installation of multiple luminaires in a row) is possible:
no
Fitting depth:
2.5 cm
Fitting opening circle :
6.8 cm
Length of connection lead:
30 + 15 + 10 cm
Plug type:
open cable end
Mounting:
recessed mounting
Protection class:
2
IP-protection class:
IP20
Additional information:
With integrated Dimmer.
Transformer power: 21 VA
Accessories:
dimmer excluded
mounting ring included
driver included
connection cable included
connecting plug included
ambient temperature:
-20°C ... +40°C
Energy efficiency category:
G
Article number:
MT75427
Purchasing quantity:
1 piece
Brand:
MEGATRON
Manufacturer:
MEGATRON
