Recessed spot DEEPER 1.0 MR16, IP20, 12V, GU5.3, QR-CBC51 max. 12W, gold

Recessed spotlight DEEPER 1.0 - MR16

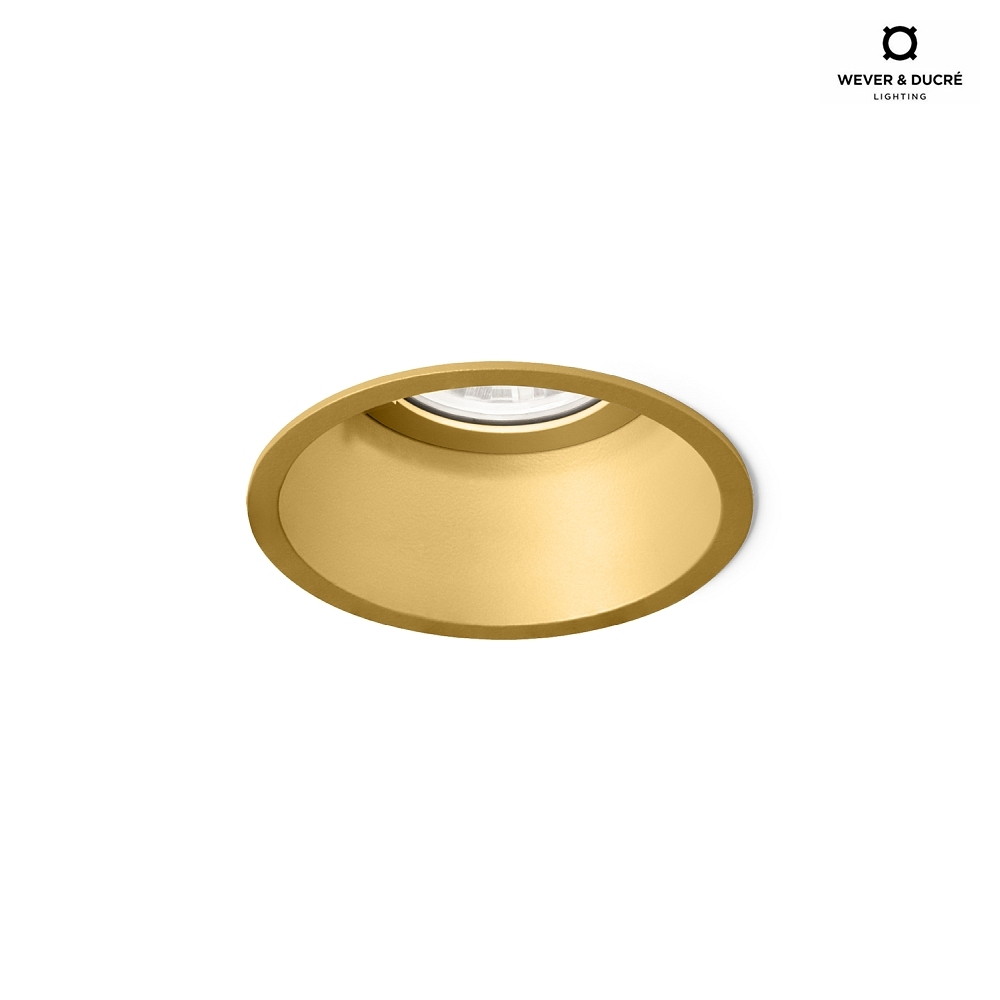

The recessed spotlight DEEPER 1.0 is a round ceiling recessed spotlight suitable for interchangeable low-voltage reflector lamps (GU5.3 QR-CBC51). With a size of Ø/H: 8.4/8.5 cm and a light emission-T of 3 cm, it offers improved anti-glare properties due to a recessed light source placement. It is suitable for ceiling installation in dry indoor areas and is mounted with clip springs for flat cavity ceilings.

Technical details

The recessed spotlight DEEPER 1.0 has a built-in depth of 9.5 cm and a built-in opening circle-Ø of 7.9 cm. It features a GU5.3 MR16 lamp type and supports QR-CBC51 with a maximum power of 12W at 12V operating voltage. With 1 light source and a weight of 0.11 kg, it is ideal for various applications such as recessed lights, ceiling lights, downlights, spotlights, and object lights.

Accessories and installation

The recessed spotlight DEEPER 1.0 is delivered without a transformer and has a socket designation GU5.3. For installation, you only need a suitable ceiling cutout of Ø 76mm to 79mm and a ceiling thickness of 4mm to 38mm. Thanks to its protection class 3 and IP20 protection rating, it is well suited for indoor use.

Dimmability and light sources

With appropriate accessories and dimmable light sources, the recessed spotlight DEEPER 1.0 can be individually adjusted. The beam angle is 45 degrees and the power connection is via terminals. With a variety of adjustable parameters such as power consumption, color temperature, beam angle, color rendition, dimming type, and SmartHome compatibility, you can customize the light according to your personal preferences.

Additional information and DEEP/DEEPER series

In addition to the recessed spotlight DEEPER 1.0, we offer a wide selection of other products from the DEEP/DEEPER series for indoor and outdoor use. Discover the versatility and quality of Wever & Ducré products and customize your lighting according to your wishes and needs.
