Recessed spot DL7801, SQUARE, GU10 & GU5.3, LED max. 8W, IP20, swiveling, black

HEITRONIC



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

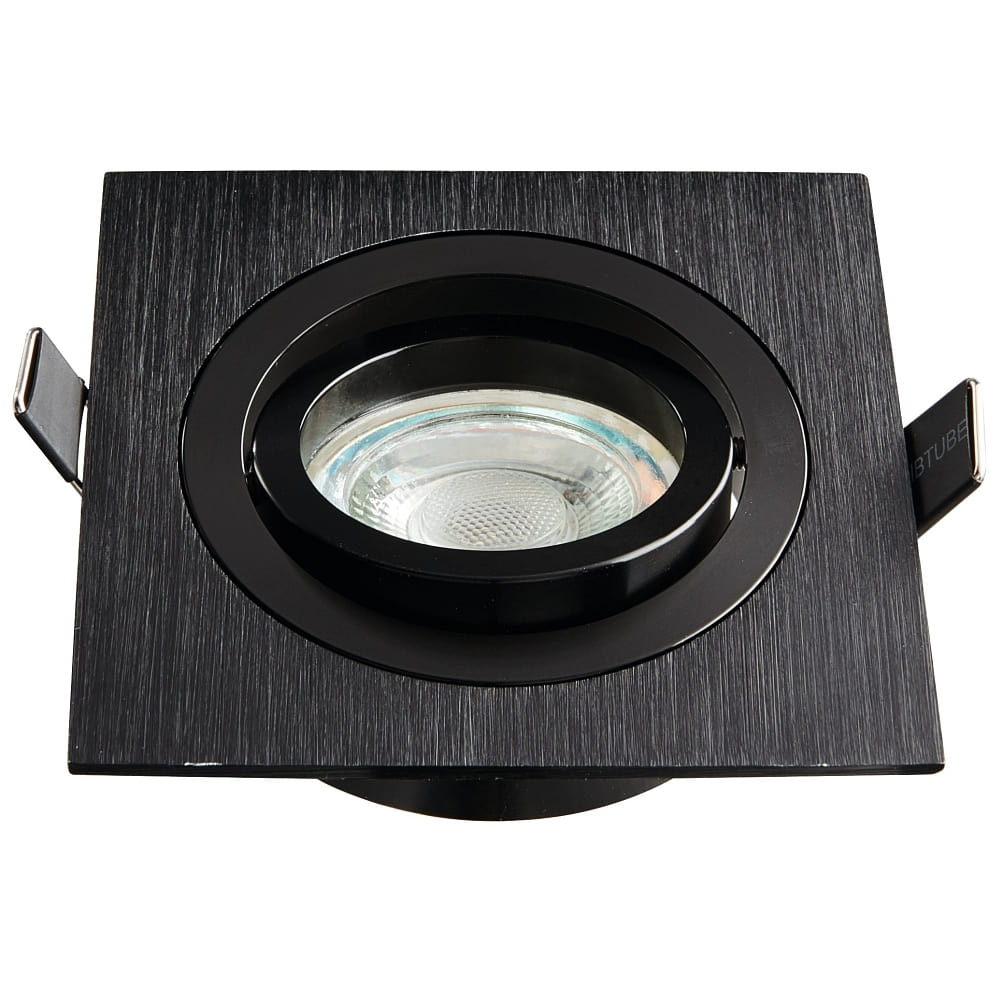

Recessed Light DL7801 - Perfect Lighting for Indoor Spaces

The recessed light DL7801 is the ideal solution to illuminate your indoor space optimally. With dimensions of 9.2 x 9.2 x 0.3 cm and a weight of only 0.11 kg, it fits into any ceiling and provides pleasant light distribution. Its square design and high-quality aluminum housing make it a stylish accessory in any room.

Versatile Applications

The recessed light is swiveling and offers a swivel range of 25° to adjust the light direction. Thanks to the included sockets for GU10 and GU5.3, you can choose between different bulbs and customize the lighting to your preferences. Please note that the installation depth may vary depending on the socket used.

Easy Installation and Dimmability

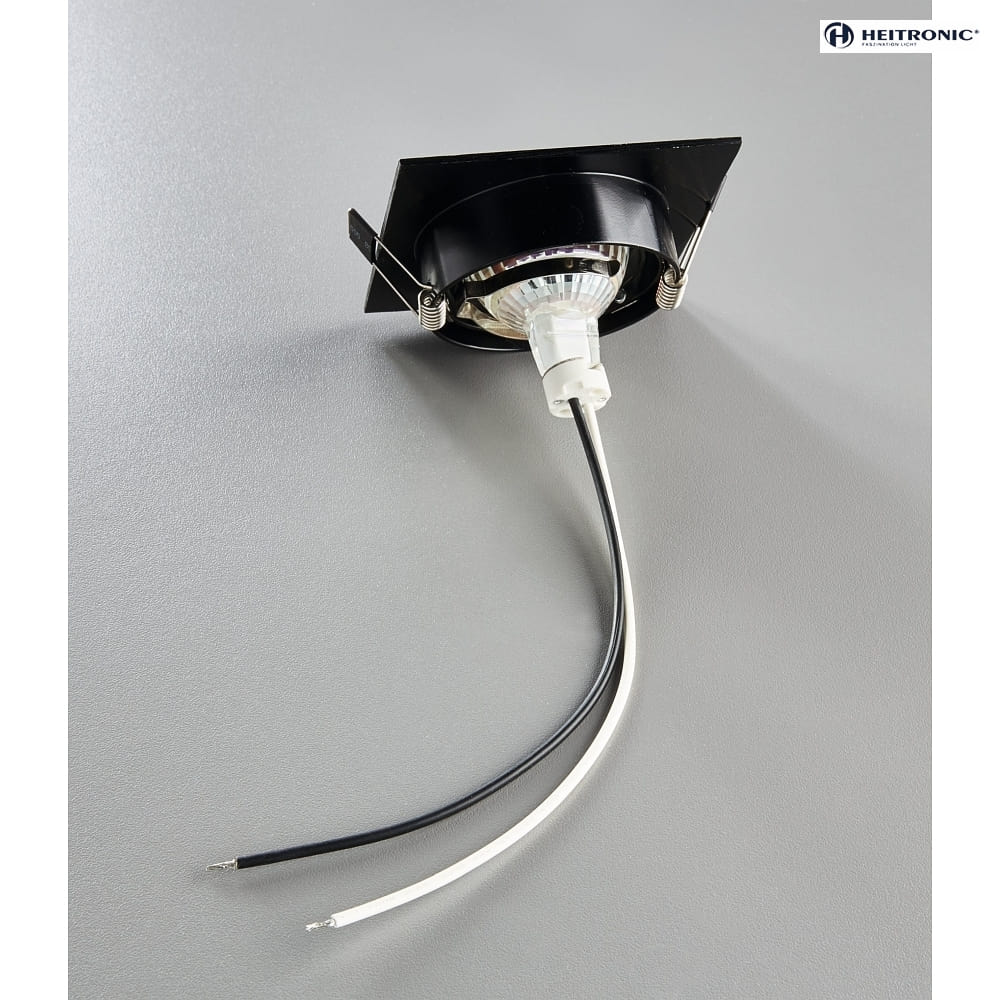

The recessed light can be easily installed through recessed installation. The 30 cm connection cable is included in the delivery. The light is dimmable, but only with dimmable bulbs and the corresponding accessories. This way, you can adjust the brightness according to your preferences.

Reliable Technical Details

The recessed light operates at a voltage of 230 / 12V and has a protection class 2. The IP protection rating is IP20, making it suitable for indoor use. The housing is made of high-quality aluminum with a brushed finish. With a cutout diameter of 7.8 cm and the matching sockets, it is easy to install and provides reliable lighting.

Perfect Illumination with LED Technology

The recessed light DL7801 uses LED bulbs that can reach a maximum power of 8W. The light distribution is direct, ensuring uniform illumination. The bulb base designation is GU5.3 and GU10. Please refer to the additional information on protection class and installation depth to optimize the use of the recessed light.

Article number:
HEI-500596
Purchasing quantity:
1 piece
Brand:
Heitronic
Product type:
Recessed luminaire
Operating voltage:
230 / 12 V
Dimmability:
with dimmable lamps
Socket of the bulb:
GU5.3 und GU10
Bulbs in delivery:
no
Bulb type:
LED
Number of bulbs:
1
Light emission:
direct
Colour:
black
Material:
aluminium
Swivel range:
25 °
Fitting opening circle :
7,8 cm
Dimension:
L∕ W∕ H: 9,2∕ 9,2∕ 0,3 cm
D: cm
Weight:
0,11 kg
Length of connection lead:
30 cm
Mounting:
recessed mounting
Field of application:
ceiling
Protection class:
2
IP-protection class:
IP20
Application area:
only suitable for indoor use
Additional information:
Sockets for GU10 and GU5.3 included
The degree of protection varies depending on the version used!
For GU10: 230V, protection class 2.
For GU5.3: 12V, protection class 3.
The installation depth depends on the bulb socket used.
Housing made of high quality aluminum with a brushed housing.
Installation depth with GU5.3: 6cm
Installation depth with GU10: 8cm
