recessed spotlight DEEPER 1.0 - LED rigid, multipower, with leaf springs IP20, mat, traffic white dimmable

Wever & Ducré



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

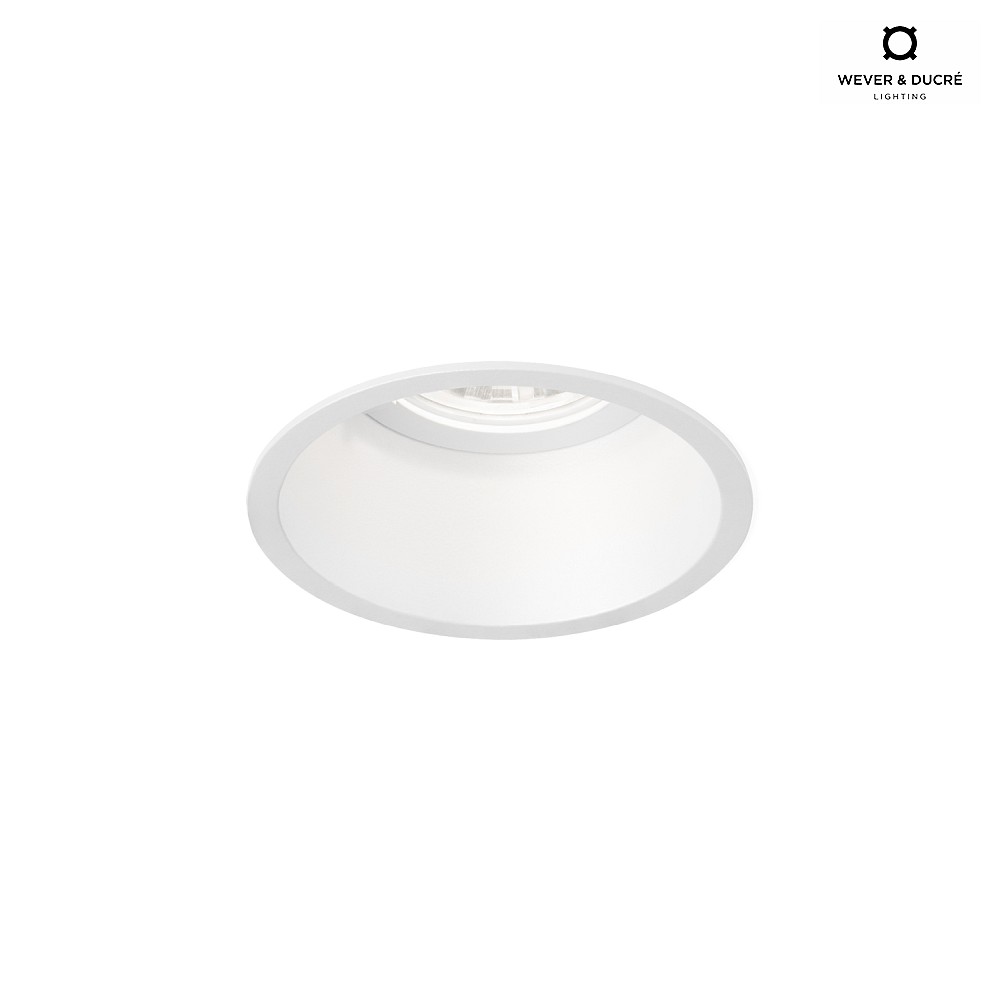

LED Recessed Ceiling Spotlight DEEPER 1.0

The LED Recessed Ceiling Spotlight DEEPER 1.0 from Wever & Ducré is ideal for dry indoor areas. With a beam angle of 15°, it provides direct and low-glare light emission downwards. The efficient LEDs offer soft, warm white light and excellent color rendering with a CRi value of over 90Ra.

Technical Details

The LED Recessed Ceiling Spotlight has a power consumption of 6/9W and a luminous flux of 505/685lm. The average lamp lifespan is an impressive 55000 hours. With an operating voltage of 17V and a weight of only 0.17kg, it is easy to install.

Energy Efficiency and Accessories

The LED spotlight has energy efficiency class D and a color rendering index of 1A. Included in the delivery are leaf springs, an LED module, and a plug. However, accessories such as connection cables, dimmers, and drivers are not included.

Installation and Application

The installation of the spotlight is easy and time-saving thanks to the leaf springs. Depending on the ceiling thickness, it can be snapped into place either within the borehole or above the mounting surface. The suitable ceiling cutout is 7.6cm to 7.9cm and the suitable ceiling thickness should be over 1.0cm.

Additional Information

The LED Recessed Ceiling Spotlight DEEPER 1.0 has an IP20 protection rating and a protection class of 3. The optics are extremely narrow-beaming and are particularly suitable as a spot. For dimmable light emission, a suitable operating device is required, which must be purchased separately. Other versions of the DEEP/DEEPER series are also available.

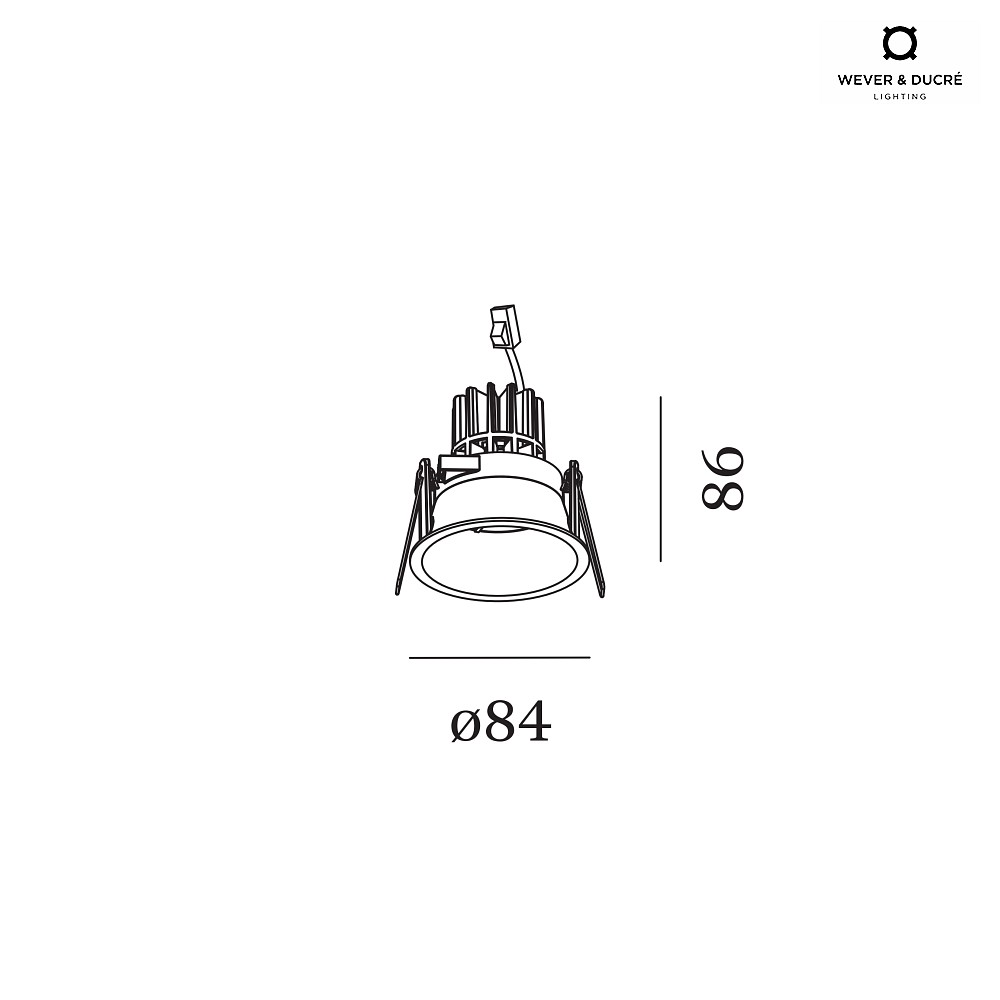

Dimension:
Ø∕ H: 8,4∕ 8,6 cm
light output-Ø: 7,3 cm
Weight:
0,17 kg
Product type:
ceiling recessed luminaire
Operating voltage:
17 V=
Dimmable:
yes
Dimmability:
depending on the control gear
Power consumption:
6/9 W
Emitting angle:
15 °
Voltage:
system connector
Beam direction:
down
Light flux:
505/685 lm
Colour temperature:
2700 K
Average life span of a bulb in hours:
55000 h
Colour rendering index:
>90 Ra
1A
Admissible burning position:
417
Protection class:
3
IP-protection class:
IP20
Accessories:
leaf springs included
LED module included
plug included
connection cable excluded
dimmer excluded
driver excluded
Energy efficiency category:
D
Energy consumption:
9 kWh/1.000 h
Purchasing quantity:
1 piece
Brand:
Wever & Ducré
Manufacturer:
Wever & Ducré
Manufacturer information
WEVER & DUCRÉ BV, Spinnerijstraat 99/21, 8500, Kortrijk, Belgium, office@weverducre.com, https://www.weverducre.com/
