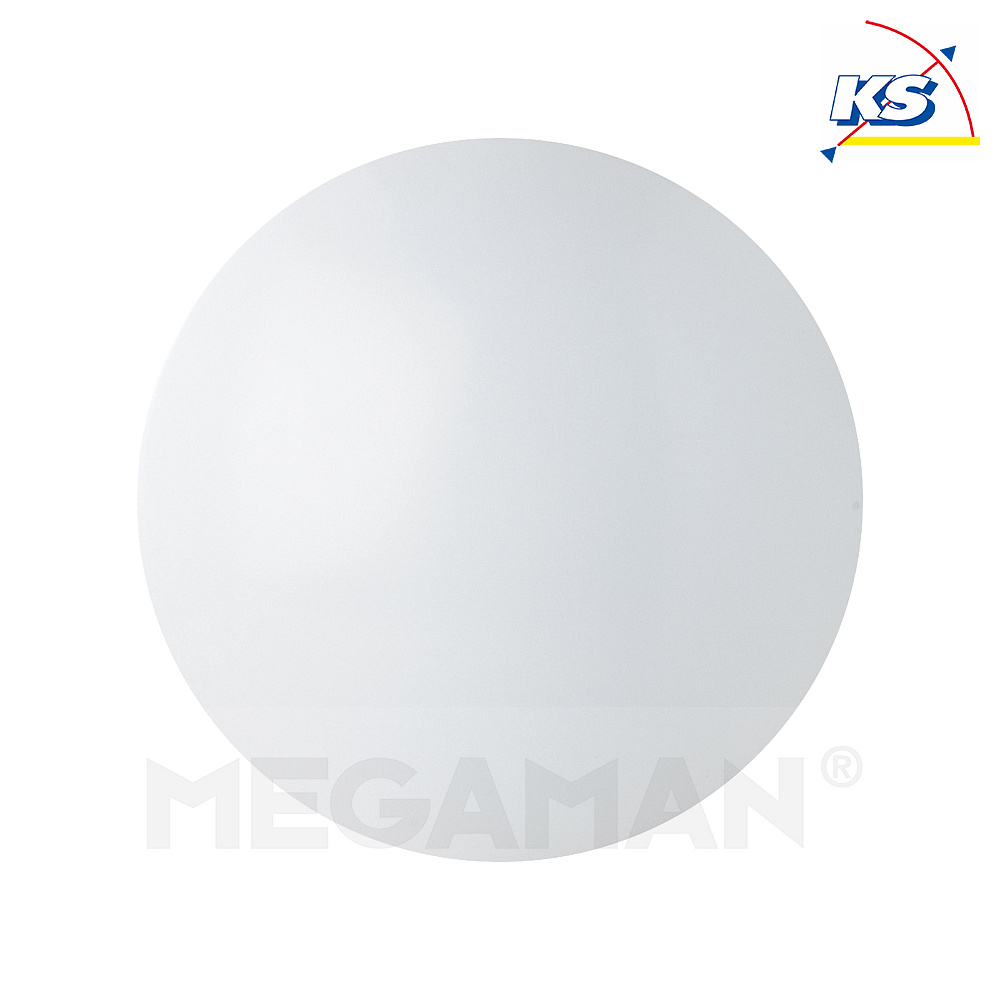

Surface mounting LED luminaire RENZO PLUS+ CCT Multi Lumen, IP44 IK03, Ø 39cm, 22W 3000/4000K 2000-930lm 110°

Megaman


CHF 45,07

excl. Shipping costs / excl. VAT
Recommended retail price: CHF 61.64

You save 26,9 %

Shipping time: 7-8 days

Product no.: MM77122
EAN: 4020856771226
In stock: 100


Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Versatile LED surface-mounted luminaire for walls and ceilings

The LED surface-mounted luminaire RENZO PLUS+ MultiLM is ideal for use indoors as well as in weather-protected outdoor areas. Thanks to its thoughtful design, it can be mounted on both the wall and the ceiling to ensure uniform and homogeneous light distribution.

Adjustable light color for individual atmosphere

With the option to choose between warm white (3000K) and neutral white (4000K) light colors, you can create the atmosphere in your space according to your preferences. The adjustable light color provides pleasant lighting in different situations.

Durable and energy-efficient thanks to LED technology

The LED surface-mounted luminaire RENZO PLUS+ MultiLM features long-lasting SMD LED light sources with an average lifespan of 50,000 hours. With an energy consumption of only 22 kWh per 1,000 hours and a light output of up to 100lm/W, this luminaire is particularly energy-efficient.

Flexibly expandable with accessories for individual requirements

With the option to retrofit an HF sensor and an emergency light module, you can expand the functionality of the LED surface-mounted luminaire RENZO PLUS+ MultiLM according to your individual requirements. The accessories are easy to install and allow for flexible use of the luminaire.

Safe and high-quality for long-lasting lighting

With an integrated DIP switch, a high-quality driver, and optional emergency power modules, the LED surface-mounted luminaire RENZO PLUS+ MultiLM offers a safe and reliable lighting solution. The opal PMMA cover is UV-resistant and impact-resistant, while the IK03 protection class provides additional safety.

Article number:
MM77122
Purchasing quantity:
1 piece
Brand:
Megaman
Product type:
wall and ceiling luminaire
Manufacturer:
Megaman
Operating voltage:
180-260 V
Dimmable:
no
Dimmability:
in several steps, integrated switch, manufacturer specific
Lamp shape:
round
Power consumption:
22 / 15 / 10 W
Emitting angle:
120 °
Bulbs in delivery:
yes
LED can be replaced :
no
Bulb type:
LED
Lamps/bulbs:
SMD LED
Light colour:
warm white / neutral white (in steps)
Light emission:
diffuse
Beam direction:
symmetric
Light flux:
- @3000K: 1850 / 1300 / 930
- @4000K: 2000 / 1400 / 1000 lm
Light yield:
'- @3000K: 84 / 87 / 93
- @4000K: 91 / 93 / 100 lm/W
Colour temperature:
3000 / 4000 K
Average life span of a bulb in hours:
50000 h
Switching cycles:
100000
Colour rendering index:
80-89 Ra
1B
Colour:
white
Glass color:
opal
Material:
plastic
polymethylmethacrylat (PMMA)
Throughwiring (installation of multiple luminaires in a row) is possible:
yes
Dimension:
Ø∕ H: 39/11.5 cm
Weight:
0.75 kg
Plug type:
clamping connection
Mounting:
surfaced mounting
Field of application:
ceiling
wall
Protection class:
1
IP-protection class:
IP44
Application area:
suitable for indoor use
limited suitable for outdoor use
Additional information:
Suitable for connection to DC or AC cicuits: 180-260V.
With integrated HF sensor module (hidden behind the cover).
Color-Select: 3000K warm white / 4000K neutral white
Luminous flux differs, depending on chosen wattage.
Level 1: 22W (4000K: 2000lm / 3000K: 1850lm)
Level 2: 15W (4000K: 1400lm / 3000K: 1300lm)
Flicker free < 3%.
Color-Select: 3000K warm white / 4000K neutral white
Connection types: L / N / PE
With integrated Dimmer.
Luminous flux differs, depending on chosen wattage.
Accessories:
motion sensor excl
emergency power module excl
DIP switch incl
driver incl
ambient temperature:
-30°C … +40°C
