track spot GRID 22CM - TRACK48 (DALI) swivelling, DALI controllable, UGR < 19, magnetic mounting IP20, black dimmable

ISOLED



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

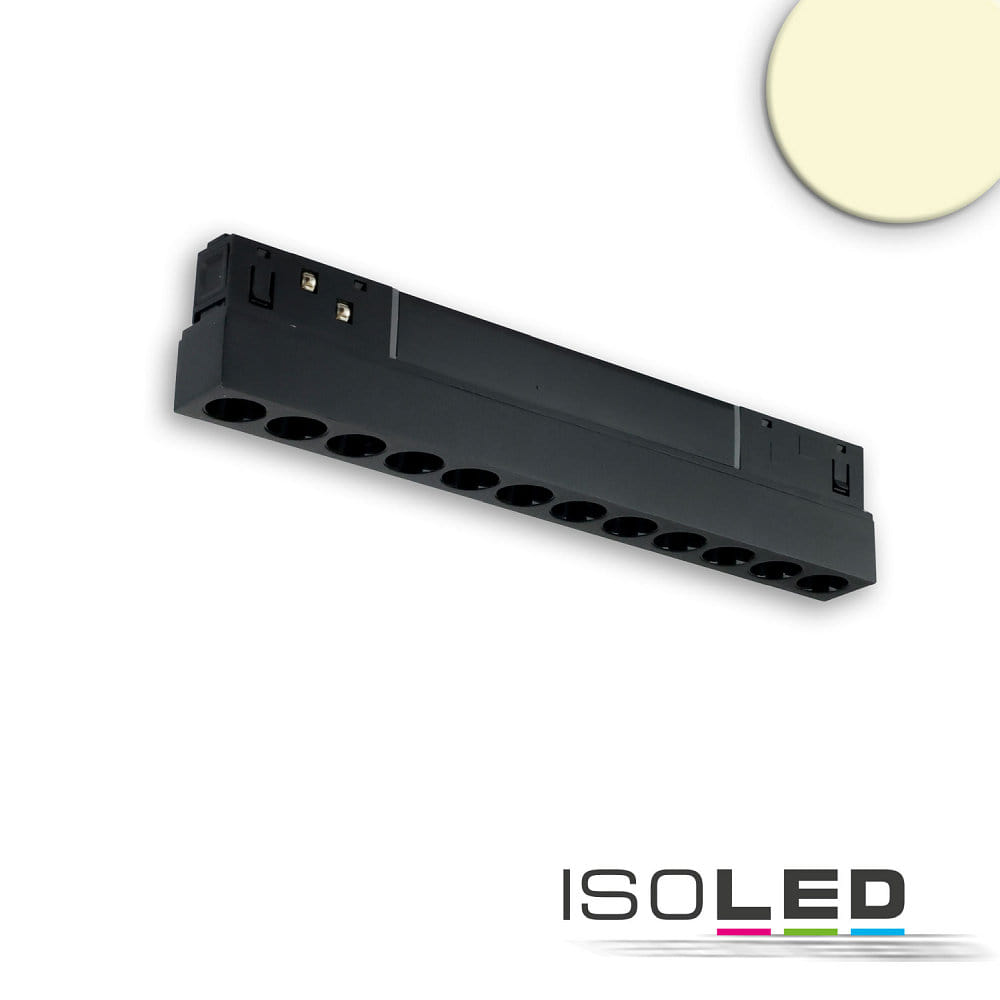

Highly efficient LED grid luminaire for NV rail system TRACK48

The LED grid luminaire from ISOLED is specifically designed for the NV rail system TRACK48. With an operating voltage of 48V DC and a power consumption of 12W, it offers high energy efficiency and a long lifespan of up to 38,000 hours.

Excellent color reproduction and light quality

Thanks to a color rendering index of 90-100Ra and a warm white light color with a color temperature of 3000K, this grid luminaire provides natural and pleasant lighting. The high CRI value of over 90 guarantees excellent color reproduction.

Flexible and easy to install

The swiveling design of the luminaire allows for individual adjustment of the light beam. It is suitable for both ceiling and wall mounting and is designed for indoor use. Installation is simple and secure via the rail system.

DALI dimmable and UGR<19

Thanks to DALI dimmability, the brightness of the luminaire can be adjusted continuously to create an individual lighting atmosphere. With a glare-free UGR value of less than 19, this grid luminaire is particularly suitable for use in office and work environments.

High-quality workmanship and reliable brand

The LED grid luminaire from ISOLED impresses not only with its technical features, but also with its high-quality workmanship and modern design. With accessories such as the matching driver and the power rail, it is a reliable solution for efficient indoor lighting.

Colour:
black
Dimension:

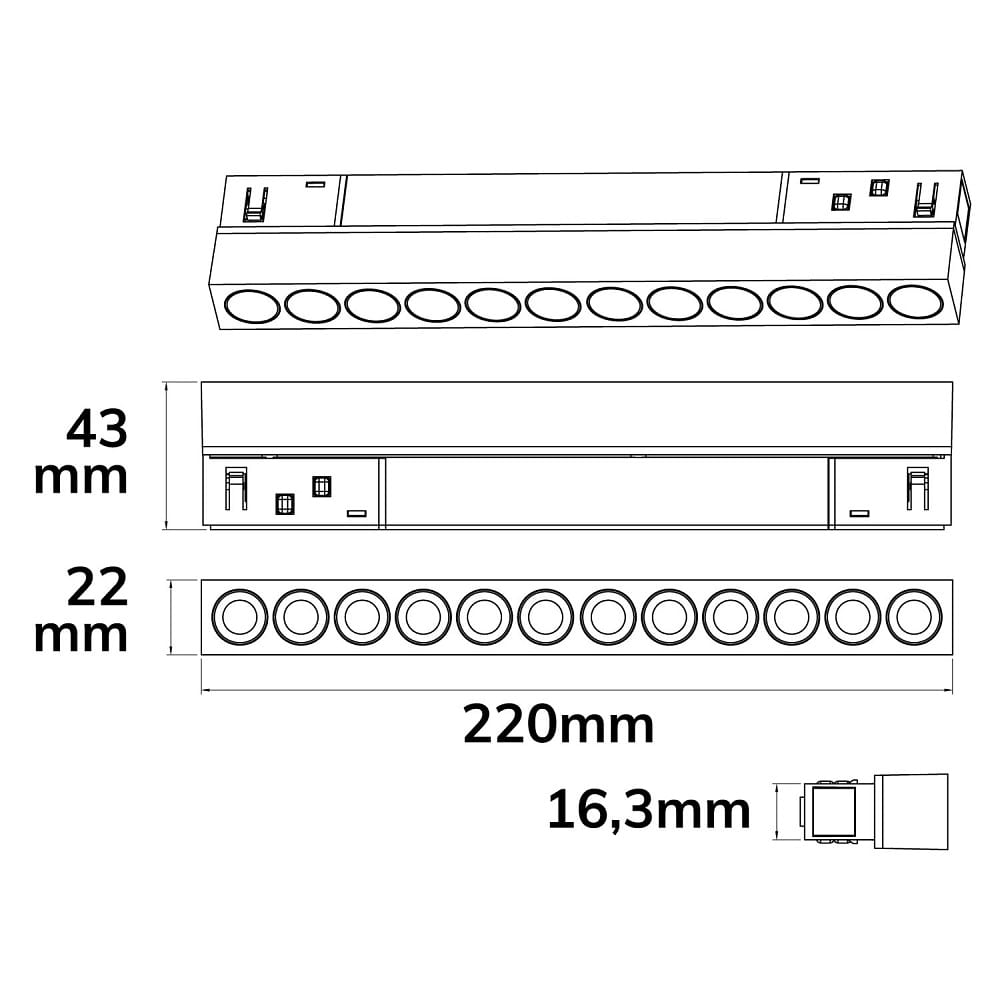

L∕ W∕ H: 22/2.2/4.3 cm
Material:
plastic
Product type:
track spot
Bulbs in delivery:
yes
Application area:
only suitable for indoor use
Field of application:
ceiling, wall
Operating voltage:
48 V=
Dimmable:
yes
Dimmability:
DALI
Power consumption:
12 W
Emitting angle:
36 °
LED can be replaced :
no
Light colour:
warm white
Light emission:
direct
Beam direction:
swivelling
Light flux:
220-880 lm
Light intensity:
2862
Light yield:
73.00 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
38000 h
Colour rendering index:
90-100 Ra
1A
IK-Rating:
IK00 no impact resistance
Mounting:
track based mounting
Protection class:
1
IP-protection class:
IP20
Additional information:
Efficiency: 87%
Accessories:
controller excluded
dimmer excluded
power track excluded
driver excluded
ambient temperature:
-10°C ... +40°C
Energy efficiency of ballasts:
A1 BAT
Energy consumption:
12 kWh/1.000 h
Article number:
ISO-116101
Purchasing quantity:
1 piece
Brand:
ISOLED
Manufacturer:
ISOLED
Manufacturer information
ISOLED FIAI Handels GmbH, Egerbach 48, 6334, Schwoich, Austria, product-details-service@isoled.shop, www.isoled.shop/details
