track spot LINEAR SPOT 22CM - TRACK48 (DALI) swivelling, DALI controllable, UGR < 19, magnetic mounting IP20, black dimmable

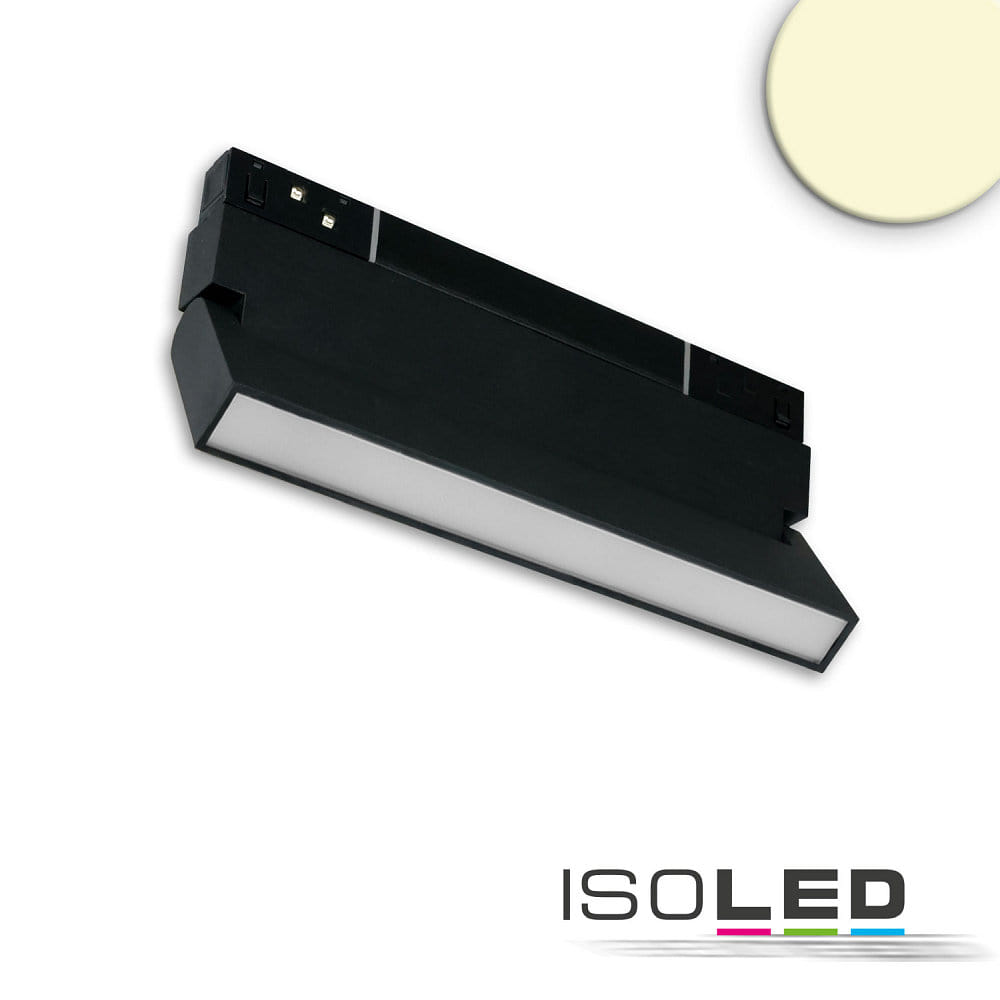

LED Linear Rail Spotlight 22cm for NV Rail System TRACK48

The LED Linear Rail Spotlight from ISOLED has been specially designed for the NV rail system TRACK48. With an operating voltage of 48V DC and a power consumption of 12W, this spotlight provides pleasant lighting in indoor spaces. It is adjustable and can be dimmed via DALI to adjust the light intensity individually.

Technical Data

The LED Linear Rail Spotlight has a beam angle of 120° and a color temperature of 3000K, which corresponds to a warm white light color. With a color rendering index of 90-100Ra and a luminous flux of 220-620lm, this spotlight offers good color rendering and sufficient brightness. The average lamp lifespan is 38000 hours, indicating a long service life.

Design and Installation

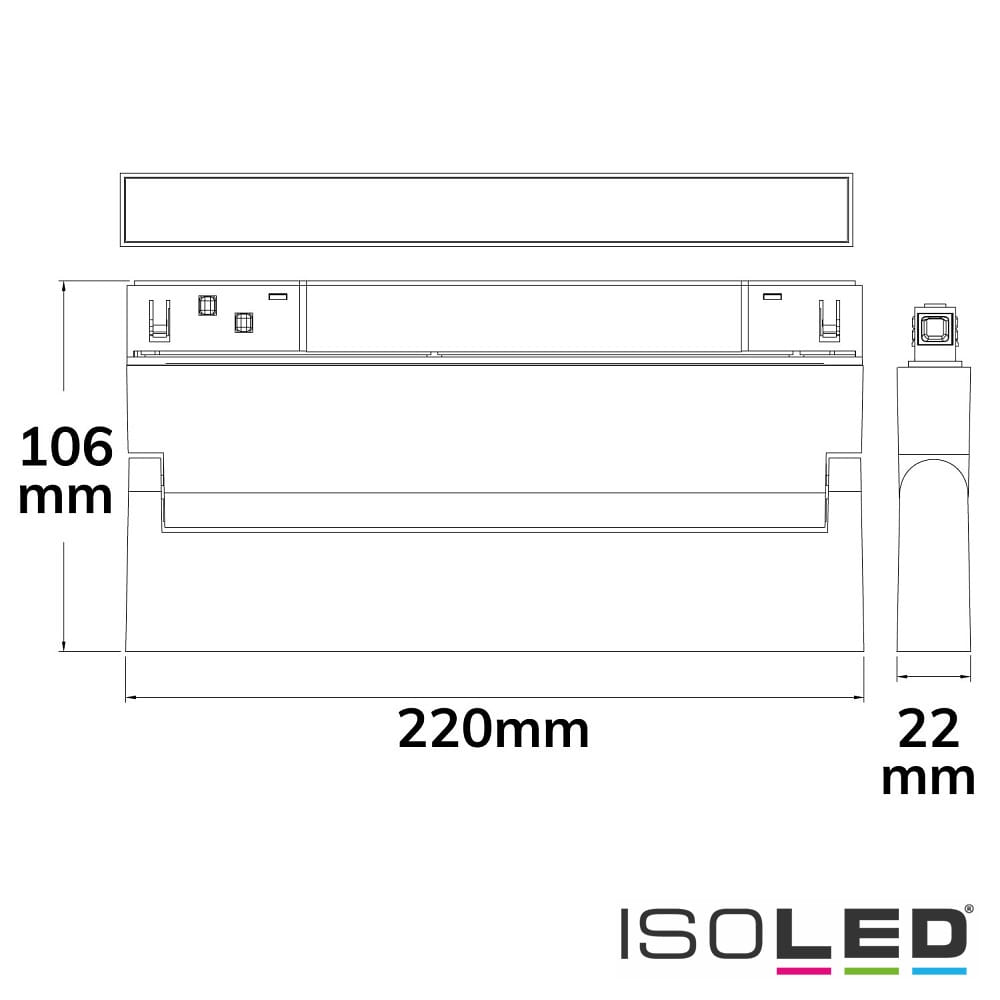

The rail spotlight is made of black plastic and has dimensions of L&#8725; W&#8725; H: 22&#8725; 2.2&#8725; 10.6 cm. It can be mounted on the ceiling or wall and is suitable for indoor use. Installation is done via a rail system and connection is made through a screw terminal. The light distribution is direct and the beam angle is >80°.

Energy Efficiency and Accessories

The LED Linear Rail Spotlight has an energy efficiency class of A1 BAT and a power factor of 0.95. It is delivered without power rail and driver, which must be purchased separately. The operating device is an electronic transformer and the conductor cross-section is 0.75mm2. With an IP protection rating of IP20 and a protection class of 1, this spotlight is safe to use.

Conclusion

The LED Linear Rail Spotlight from ISOLED is an efficient and flexible solution for indoor lighting. With its high-quality construction, good light output, and easy installation, it is ideal for use in various areas such as offices, shops, or living spaces. Thanks to the option of dimming via DALI, the light mood can be adjusted individually.
