track spot TRACK48 SHADE (DALI) down, flat, rigid, DALI controllable, magnetic mounting IP20, black dimmable

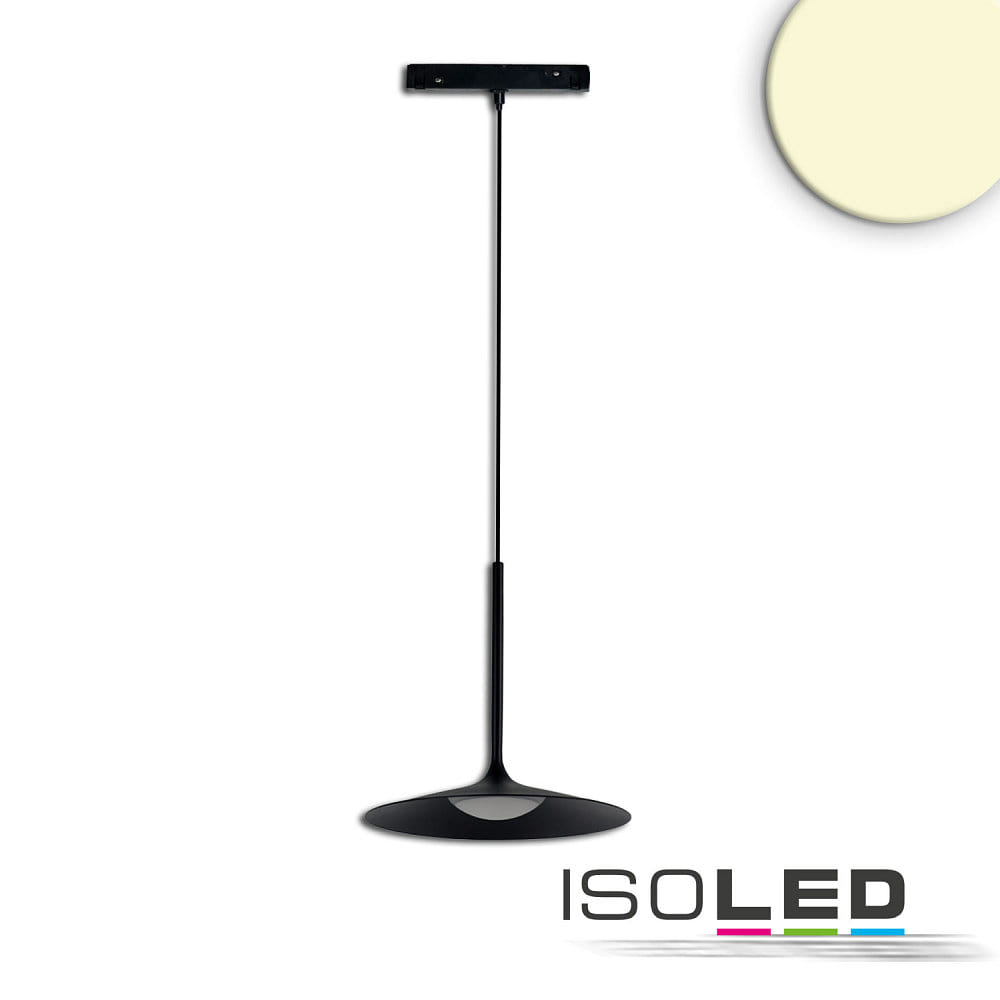

LED pendant light SHADE for NV track system TRACK48

The LED pendant light SHADE from ISOLED is specially designed for the NV track system TRACK48. With an operating voltage of 48V DC and a power consumption of 5.5W, it offers an energy-efficient lighting solution for indoor spaces.

Technical data

The pendant light SHADE has a beam angle of 120° and a warm white light color (3000K). The color rendering index (CRI) is >90, ensuring excellent color reproduction. The DALI dimmability allows for flexible adjustment of light intensity.

Light output and efficiency

With a luminous efficacy of 67lm/W and a luminous flux of 370-1200lm, the SHADE provides bright and uniform illumination. The average lamp life is an impressive 38000 hours, ensuring long-term use.

Design and installation

The pendant light is elegantly designed in black and made of high-quality plastic. It is mounted as a track spotlight and is ideal for ceiling use. Accessories such as the power track and driver are not included.

Additional information

Further technical details of the LED pendant light SHADE include an extremely wide beam angle of >80°, an electronic transformer as the operating device, a power factor of 0.95, and a conductor cross-section of 0.75mm2. The protection class 1 and IP protection rating IP20 ensure safe use indoors.
