transformer box

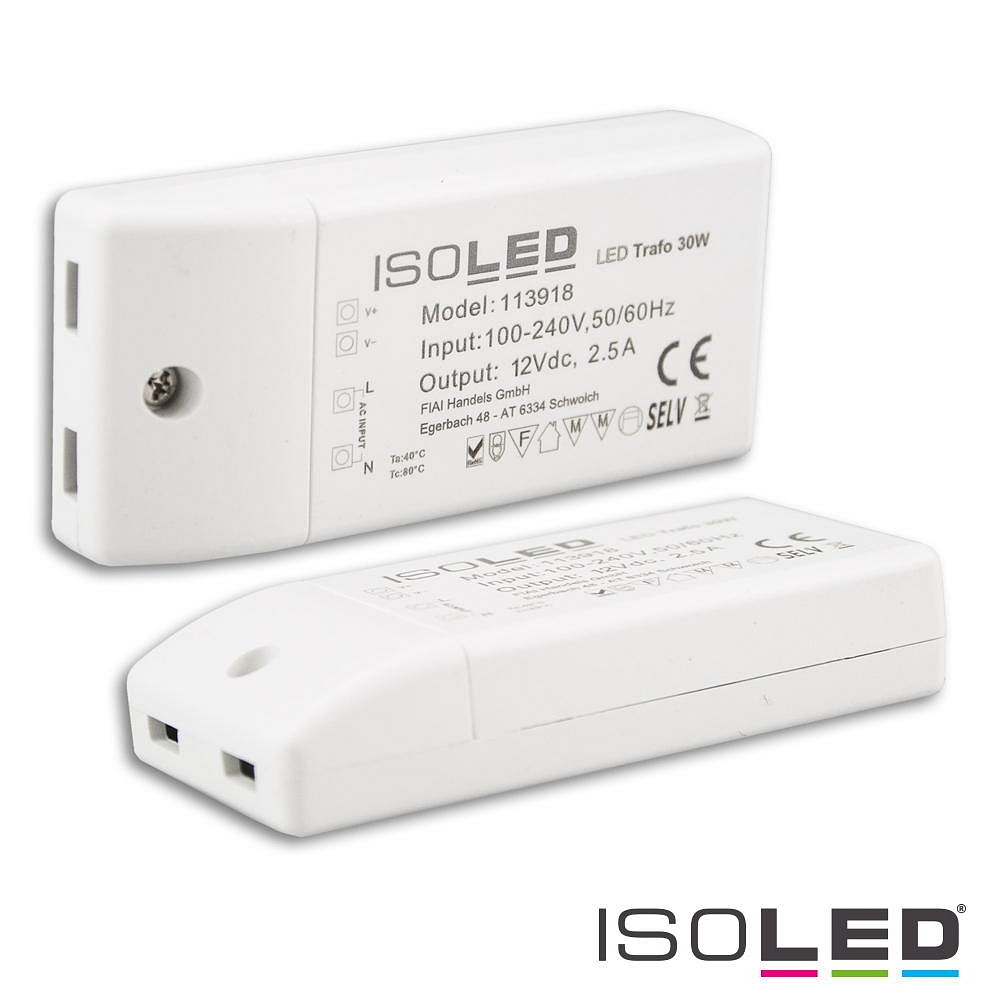

LED Transformer 12V/DC, 0-30W, compact, SELV

The LED transformer with an operating voltage of 12V/DC and a power of 0-30W is compact and particularly safe due to the Safety Extra Low Voltage (SELV). This makes it ideal for use indoors, for example on the wall.

Technical Details

The constant current strength is 2500mA, while the size of the transformer is LxWxH: 9.1x4.1x1.9 cm. The installation depth is 1.9 cm and the mounting opening is rectangular with a width of 4.1 cm. The IP protection rating of the transformer is IP20.

Additional Information

The transformer has a short-circuit window with a fuse transformer and can be mounted directly. The electrical connection is made via a screw or spring terminal. However, the transformer is not dimmable.

Article Number and EAN

The article number of the LED transformer is ISO-113918 and the EAN number is 9009377066504. With this information, the transformer can be clearly identified and quickly ordered.

Versatile Use

Thanks to its compact size and easy installation, the LED transformer is suitable for various indoor applications. Whether for wall lighting or other purposes, this transformer is versatile and can be used in a variety of ways.
