wall luminaire UNI II TILT with spacer, cardanic swivelling IP20, deep black dimmable

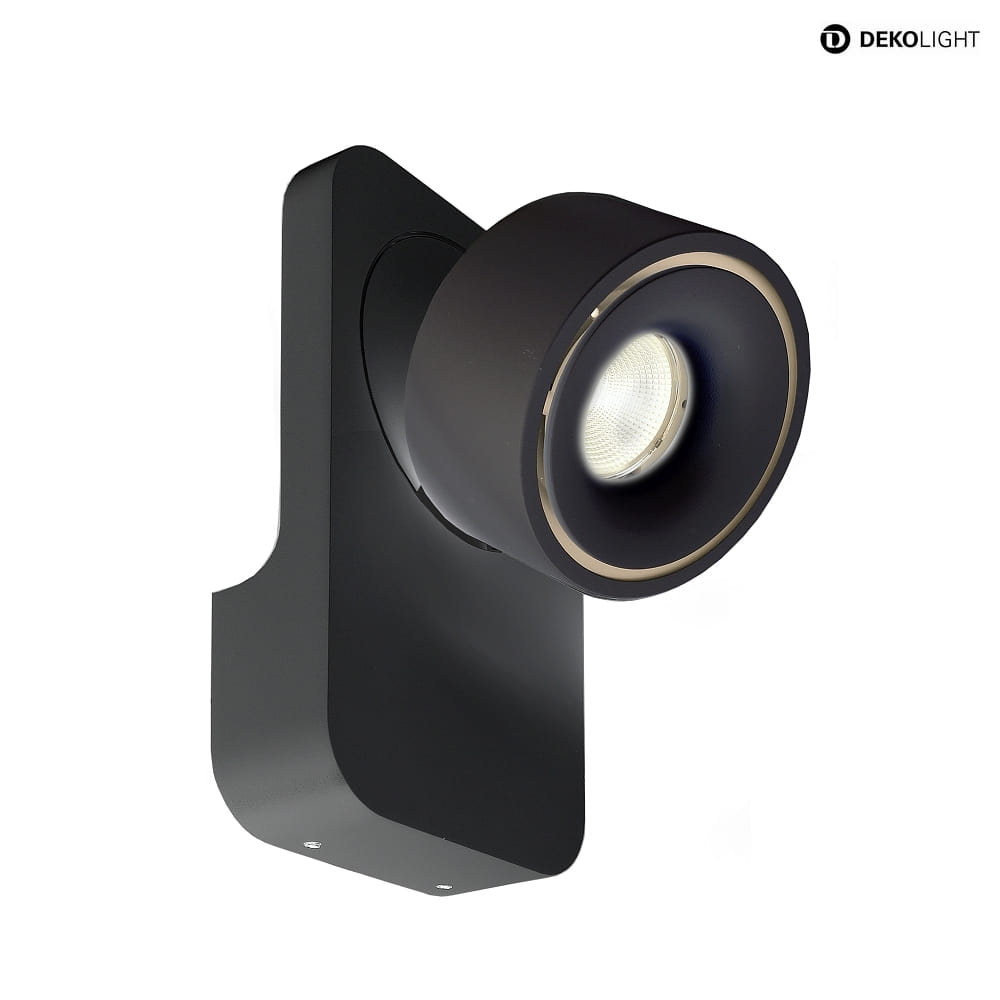

LED wall light UNI II TILT

The LED wall light UNI II TILT is an adjustable ceiling-mounted spotlight for indoor use. With a rotation range of 350° and a tilt angle of 90°, the light beam can be optimally directed towards objects. The warm white, dimmable light output creates a pleasant atmosphere, while the very good color rendering (CRI >90Ra) ensures natural colors.

Technical details

The wall light has an energy consumption of 12 kWh/1,000 h and a power consumption of 12W. With a luminous intensity of 1420cd and a luminous flux of 670lm, the LED wall light offers efficient lighting. The average lamp lifespan is 20,000 hours and the light output is 55.8lm/W.

Accessories and installation

The LED wall light comes with a driver, while the cover, diffuser, lens attachment, reflector, and honeycomb grid are available separately. The installation is done through surface mounting and the power connection is made via a clamp connection. With a weight of 1.092kg and dimensions of 12 x 20.5 x 9.5 cm, the wall light is compact and easy to install.

Design and material

The wall light is designed in an elegant deep black design and is made of high-quality aluminum die-casting, plastic, and polycarbonate (PC). The shape of the light is round and it has a head diameter of 10 cm. With a protection class of 1 and an IP protection rating of IP20, the wall light is safe and protected from dust and moisture.

Additional information

The LED wall light UNI II TILT is ENEC certified and suitable for indoor use. It offers a rotationally symmetrical light distribution and can be connected to 230V AC mains voltage. With a power factor PF of 0.9 and a start-up time of 0.5 s at 60% light output, the wall light impresses with its efficiency and performance. Additionally, extensive accessories for customization are available, such as reflector rings in various colors, honeycomb filters, and diffusion lenses. Other lights from the UNI II series are also available for different mounting options.
