ceiling luminaire TRACE GRID 1.0 down, direct IP20, mat, deep black dimmable

Wever & Ducré



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

LED Ceiling Light TRACE GRID 1.0

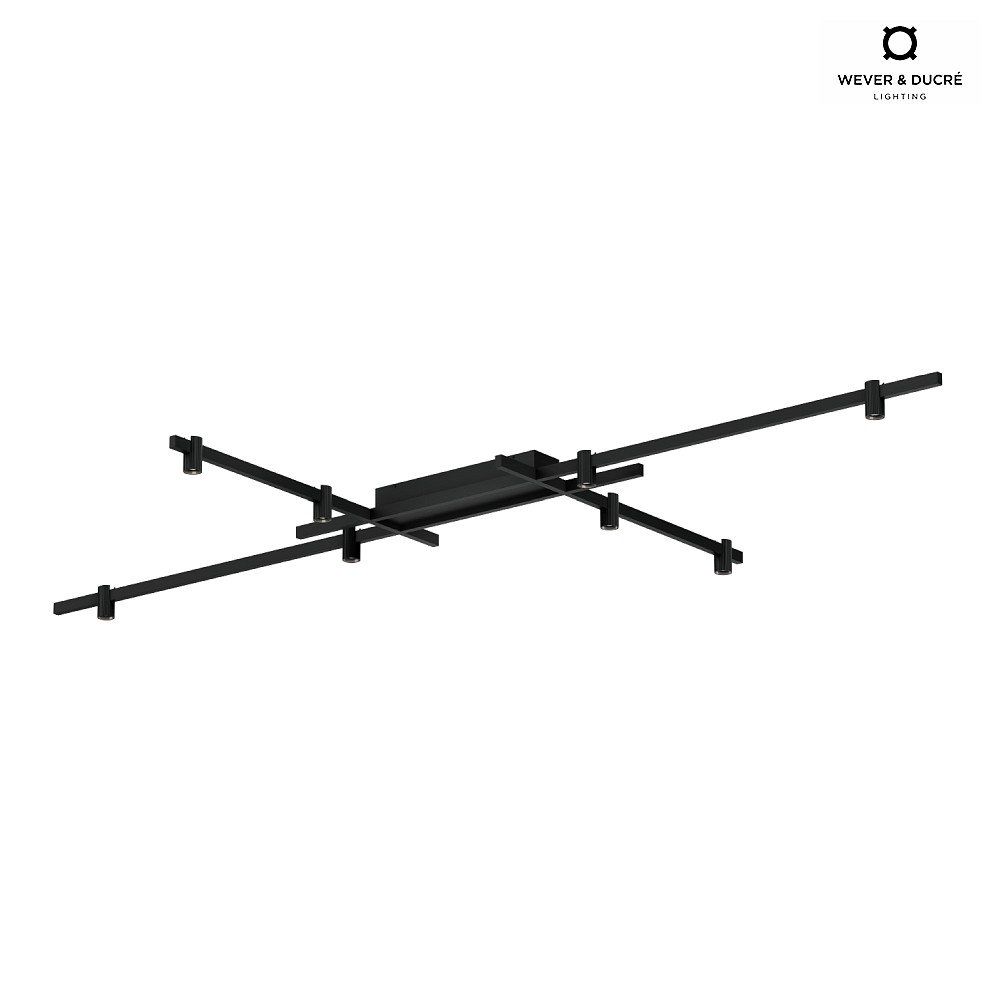

The LED ceiling light TRACE GRID 1.0 is a striking, minimalist ceiling light that creates a special atmosphere in any room. With 8 spots shining directly downwards, it provides a high-quality light source for any environment.

Quality and Design

This ceiling light stands out for its high-quality construction made of matte powder-coated aluminum die-cast. The spots have a grooved exterior and are equipped with durable, dimmable COB LEDs that emit warm white light. The color rendering is at a very good level with a CRi of over 90Ra.

Technical Details

The LED ceiling light TRACE GRID 1.0 has an energy consumption of 40kWh/1,000 h and a power consumption of 40W. The total luminous flux is 3200lm and the average lamp lifespan is an impressive 50,000 hours. The ceiling light has 8 light sources and a beam angle of 30°.

Installation and Accessories

The ceiling light is ready for direct connection to 230V AC mains voltage, as the LED driver is integrated in the ceiling connection. The accessories include the driver, while a dimmer must be purchased separately. The installation is done via terminals and the protection class is 1. With an IP protection rating of IP20, the light is suitable for indoor use.

Additional Information

The LED ceiling light TRACE GRID 1.0 offers a wide beam optics (Flood) and a photobiological risk class of RG1. The color consistency is at 2 SDCM. With dimensions of 171.6 x 88.9 x 8.2 cm, the light fits in many different rooms and can be perfectly combined with other items from the TRACE series.

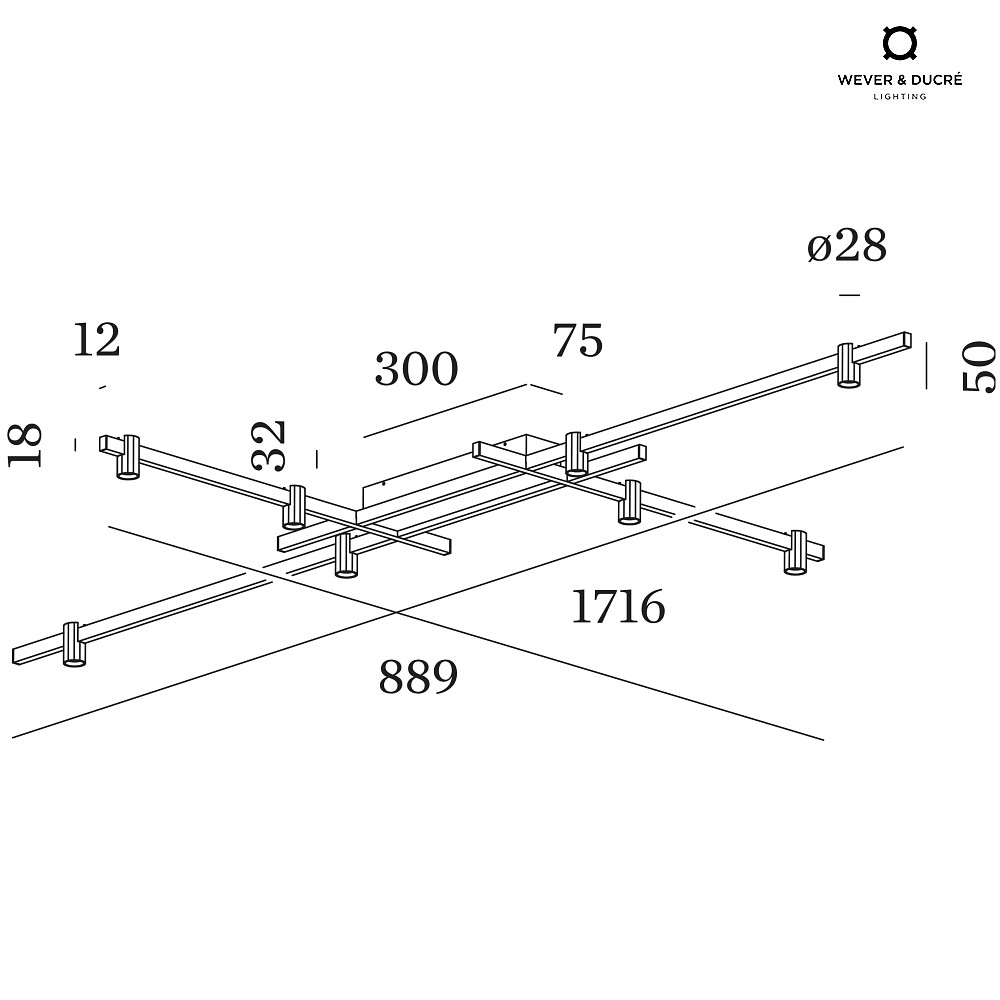

Dimension:
total-L∕ W∕ H: 171,6∕ 88,9∕ 8,2 cm
head-Ø∕ H: 2,8∕ 5 cm
outreach-W∕ H: 1,2∕ 1,8 cm
ceiling connection-L∕ W∕ H: 30∕ 7,5∕ 3,2 cm
Weight:
1,5 kg
Product type:
Deckenleuchte
luminary type:
Ceiling luminaire
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
trailing edge
Power frequency:
50-60 Hz
Power consumption:
40 W
Emitting angle:
30.00 °
Number of bulbs:
8
Voltage:
Clamp
Beam direction:
down
Light flux:
3200 lm
Colour temperature:
2700 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>90 Ra
UGR:
< 10
Colour rendering index:
1A
Admissible burning position:
567
IP-protection class:
IP20
Accessories:
driver included
dimmer excluded
Energy efficiency category:
E
Energy consumption:
40 kWh/1.000 h
Brand:
Wever & Ducré
Manufacturer:
Wever & Ducré
Manufacturer information
WEVER & DUCRÉ BV, Spinnerijstraat 99/21, 8500, Kortrijk, Belgium, office@weverducre.com, https://www.weverducre.com/
